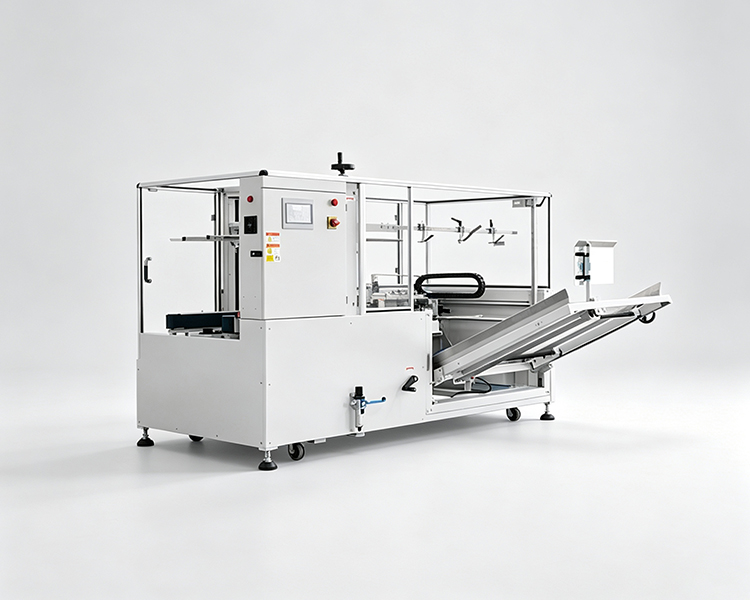

Automatic Carton Forming Bottom Sealer

GPK-40H18E

The automatic carton erector is developed and produced for mass production line. The vertical production speed can reach 18 ctns/min. It can draw cartons and form it simultaneously, and the price is 50% lower than other vertical erector in the same level. This erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

동영상 PDF 브로셔 최고의 견적을 받으세요

Max Speed

18 cases/min

Packing Size

L200-460×W150-400×H100-400mm

기능 피쳐
매개변수
A PHP Error was encountered

Severity: Notice

Message: Undefined index: wd_details

Filename: www/pro.php

Line Number: 67

Backtrace:

File: /data/user/myfolder/views/www/pro.php
Line: 67
Function: _error_handler

File: /data/user/myfolder/application/controllers/Lang.php
Line: 300
Function: view

File: /data/user/htdocs/index.php
Line: 315
Function: require_once
포장 효과

Convenient auto-adjustment: Changing the size of the carton can be adjusted manually.
PLC+ man-machine interface: Easy operation, simple maintenance and stable performance.
Convenient unpacking: The bottom of the carton is folded and sealed during transportation without stopping. The whole process of the suction box, forming, bottom folding and sealing can be completed in 3 seconds.
Save labor: The unpacking of goods is completed by machine instead of labor.
Safer: Adding a transparent organic glass protective cover, and the door will automatically stop to avoid accidental operation.

MODEL	GPK-40H18
Carton Opening Speed	15-18 cases/min
Carton Size	L200-460×W150-400×H100-400mm (The minimum cannot exist at the same time)
Power Supply	220V 50/60Hz 1 Phase
Power	240W
Adhesive Tape Width	48/60/75mm (Choose one type)
Carton Storage Quantity	80-100pcs (1000mm)
Air Consumption	500NL/min
Air Compressing	6kg/cm³
Table Height	620+30 mm
Machine dimension	L2450×W2100×H1450mm
Machine Weight	550KG

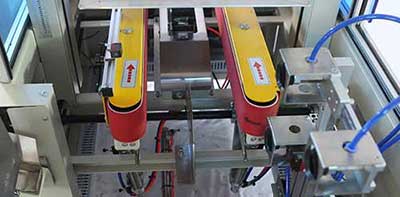

Durable parts

Using durable parts and electrical components, the accessories have stable performance, strict structural design, and no vibration during operation.

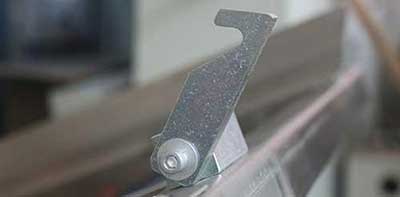

Push box plate automatic buckle

The trough fixing bracket adopts the automatic buckle of the push box plate to lock the trough plate, which is convenient for users.
Exterior

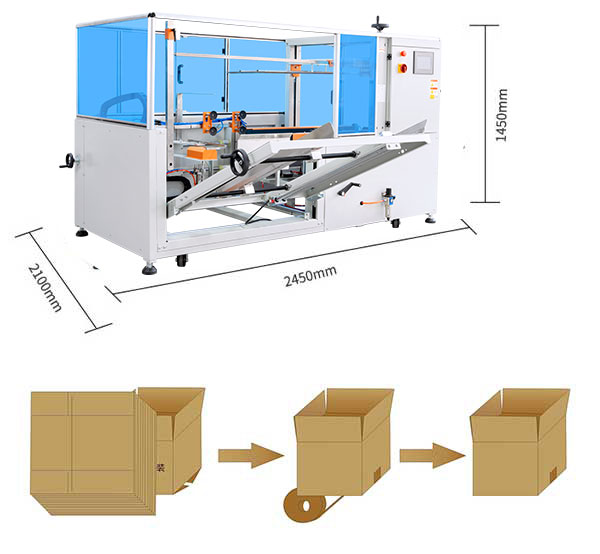

The total length of the machine is 2450mm, which occupies smaller area. Similar products in the market have relatively large shape, length of more than 3600mm,which cover large area.

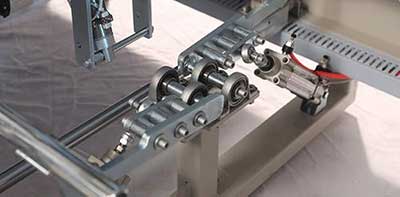

Precise parts

Tens of thousands of parts aging tests to ensure that every detail is more stable, low failure rate, safe production, and efficient.

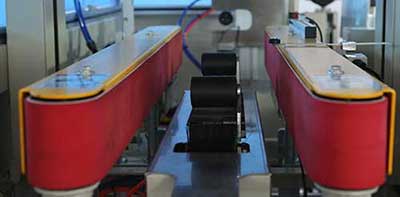

Endurable conveyor belt

Using endurable conveyor belt with strong friction which can transport steadily.

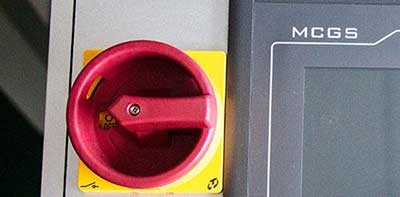

Power switch

Adopt cost-effective power switch, the service life can reach 100,000 times

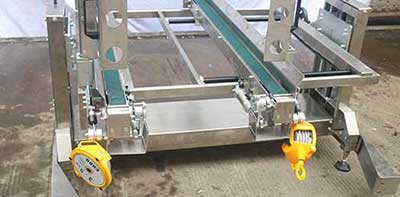

Available for customized horizontal material trough

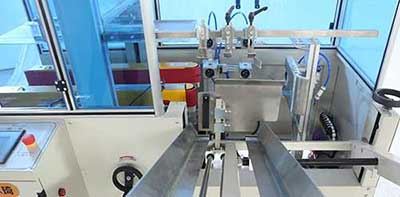

Suction cup

Using suction cups with strong suction to grab carton stably and durable.

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.
