I-Type Sealing Machine (Flapless)
I-Type Sealing Machine (Flapless)

I-Type Sealing Machine (Flapless)

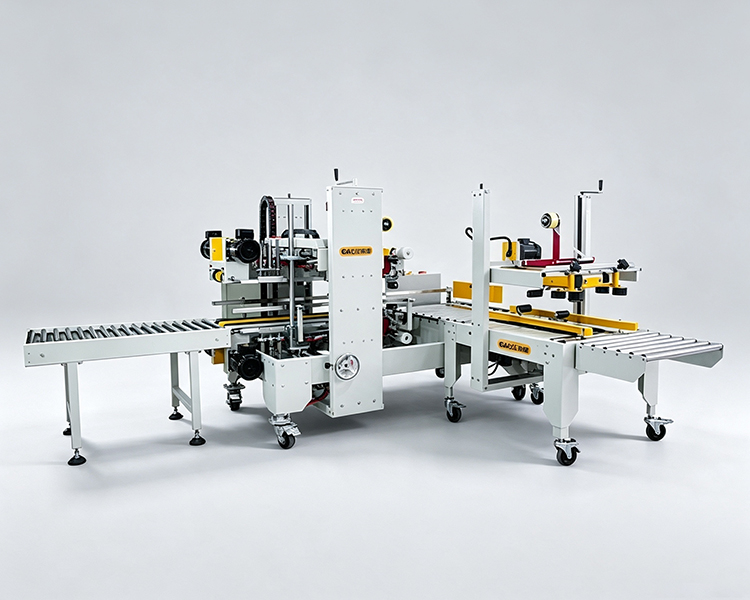

GPB-56+GPG-755E

The Top-and-Bottom Belt-Driven Carton Sealer with Four-Corner Edge Sealing is designed for sealing lightweight, tall, and narrow cartons. Driven by upper and lower belts, the machine simultaneously applies straight-line sealing to the top and bottom of cartons, ensuring smooth, fast, and reliable sealing. It also performs four-corner edge sealing to provide enhanced moisture- and water-resistant protection.

The machine is particularly suitable for lightweight, tall, and narrow cartons and is widely used in the food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, electronics, and other industries.

Max Speed

8pcs/min

Carton Size

Max
L700mm x W500mm x H500mm

  • Suitable for Lightweight, Tall & Narrow Cartons
    Specially developed for lightweight, tall, narrow, and heavy-duty cartons, helping prevent carton lifting and misaligned tape application during sealing.
  • High Efficiency
    The belt-driven design provides a stable sealing process with a sealing speed of up to 10 cartons/min.
  • Labor Saving
    Automates the carton sealing process, reducing the need for manual labor and improving packaging efficiency.
  • Easy Adjustment
    The machine width and height can be manually adjusted according to carton specifications, making setup simple and convenient.
  • Enhanced Safety
    Equipped with safety protection features to provide safer and more reliable operation.
MODEL GPB-56+GPG-755E
Sealing Speed 6-8pcs/min
Carton Size Range L320-700mm*W200-500mm*H180-500mm
Power Supply 220V 50/60Hz 1Phase
Power 1220W
Tape Size 48/60/72mm
Air Consumption 220NL/min
Required Air Pressure 0.6Mpa
Table Height 600-650mm
Machine Dimensions L2400mm*W1900mm*H1520mm
Machine Weight 600kg
