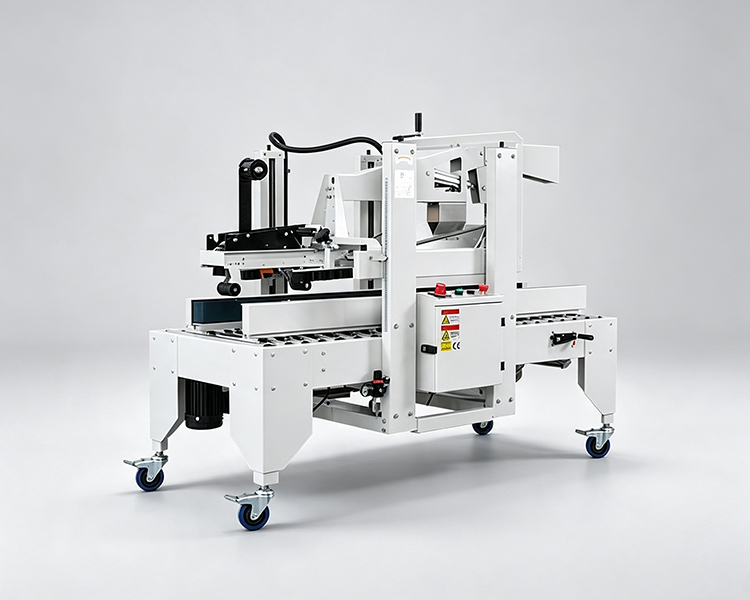

Double-Column Flap Folding Carton Sealer
Double-Column Flap Folding Carton Sealer

Double-Column Flap Folding Carton Sealer

GPC-766

The Double-Column Flap Folding Carton Sealer is an optimized and upgraded product based on the Single-Column Flap Folding Carton Sealer. The double-column structure clearly improves the machine's rigidity and stability, preventing the flap-folding arms from shaking during high-speed flap folding while significantly reducing noise levels.

In addition, the machine is equipped with an independent electrical control box system, making operation more convenient and providing a higher level of safety. The double-column structure can also be equipped with an upper drive system according to the characteristics of the customer's products.

This carton sealer is widely used in the food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, electronics, and other industries.

Max Speed

18m/min

Carton Size

Max
L700mm x W600mm x H600mm

  • Stable Structure, High Efficiency:
    The double-column structure ensures stable high-speed operation, enabling fast flap folding and carton sealing while improving the overall efficiency of the packaging line.
  • Selected Components, Stable & Durable:
    Equipped with components from leading brands for stable, reliable overall performance and long service life.
  • Smooth & Precise Sealing:
    Uses instant-adhesion tape sealing to complete the carton sealing operation in one continuous process. The sealing result is neat and aesthetically pleasing, while the standardized sealing process reduces tape consumption.
  • One Machine for Different Carton Sizes:
    The carton sealing height and width are adjustable, providing a wider sealing range and accommodating cartons of various sizes.
  • Optimized Process, Wide Applicability:
    Seamlessly integrates with case packers and palletizers, reducing unnecessary conveying time as well as efficiency fluctuations and error risks caused by operator fatigue.

MODEL GPC-766
Conveyor Speed 18min/min
Carton Size Range L250-700mm*W150-600mm*H150-600mm
Power Supply 110/220V 50/60Hz 1Phase
Power 420W
Tape Size 48/60/72mm
Tape Roll Diameter 300mm
Air Consumption 50NL/min
Required Air Pressure 0.6Mpa
Table Height 600-750mm
Machine Dimensions L1920mm*W1020mm*H1620mm
Machine Weight 300kg
