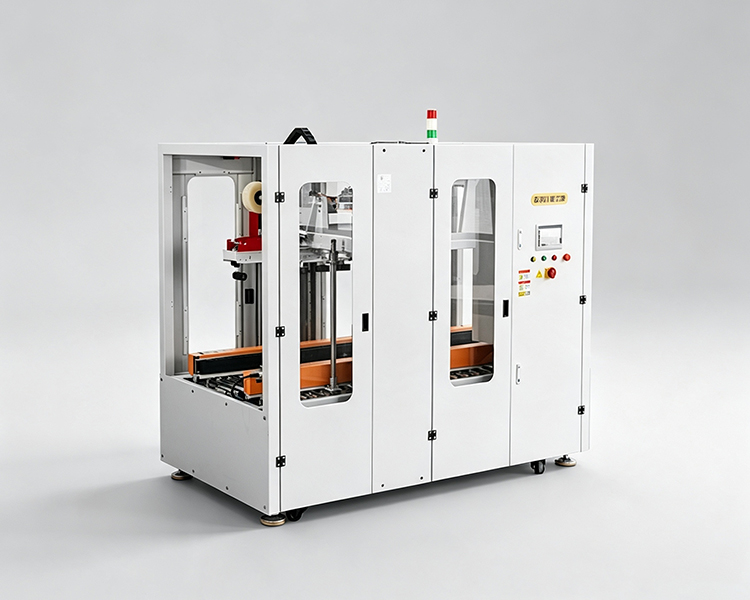

Servo Automatic Flap Folding Carton Sealer
Servo Automatic Flap Folding Carton Sealer

Servo Automatic Flap Folding Carton Sealer

GPI-655SV

The Servo Automatic Flap Folding Carton Sealer is suitable for straight-line sealing of cartons in multiple specifications during the same operating period. It is equipped with an automatic width and height detection mechanism, which automatically adapts to the carton size and adjusts the machine width and height. It automatically folds the top flaps of the carton inward, providing smooth and stable operation, with the entire carton sealing process completed continuously. The sealing result is neat and firmly applied.

The machine adopts a frame-type structure, making it more robust, aesthetically pleasing, and safer. It can be used together with automated packaging machinery. It reduces costs, eliminates the need for manual operation, and standardizes packaging. It is widely used in the food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, electronics, and other industries.

Max Speed

8pcs/min

Carton Size

Max
L600mm x W500mm x H500mm

  • Adaptive Size Adjustment:
    The front section is equipped with an automatic width and height detection structure, enhancing the stability and precision of the machine. It automatically identifies and adjusts the carton width and height, making it suitable for cartons of multiple specifications at the same time, facilitating production and reducing time costs.
  • More Robust Structure, More Stable Operation:
    The machine adopts an integrated frame-type structure, providing stable operation, greater rigidity, and improved durability.
  • Higher Speed:
    Controlled by an Inovance servo motor, providing precise and fast operation. The automatic adjustment mode reaches 7 cartons/min, while the fixed-size pre-adjustment mode reaches 10–12 cartons/min.
  • More Versatile Functions:
    Two functional programs can be provided according to customer requirements: travel-switch adaptive mode + fixed-size input mode. Non-standard customization is available.
  • Attractive Appearance:
    Adopts an acrylic and metal door-panel structure, providing a good texture and an elegant appearance.
  • High Safety Performance:
    Equipped with a safety protection door and a three-color warning light. The machine stops and triggers an alarm immediately when the door is opened, making operation safer and more worry-free.

MODEL GPI-655SV
Sealing Speed 6-8pcs/min
Carton Size Range L250-600mm*W150-500mm*H180-500mm
Power Supply 220V 50/60Hz 1Phase
Power 2700W
Air Pressure 0.6-0.8Mpa
Table Height 600+150mm
Machine Dimensions L2020mm*W1480mm*H1700mm
Machine Weight 800kg
