Fully Automatic I-Type Carton Sealer
Fully Automatic I-Type Carton Sealer

Fully Automatic I-Type Carton Sealer

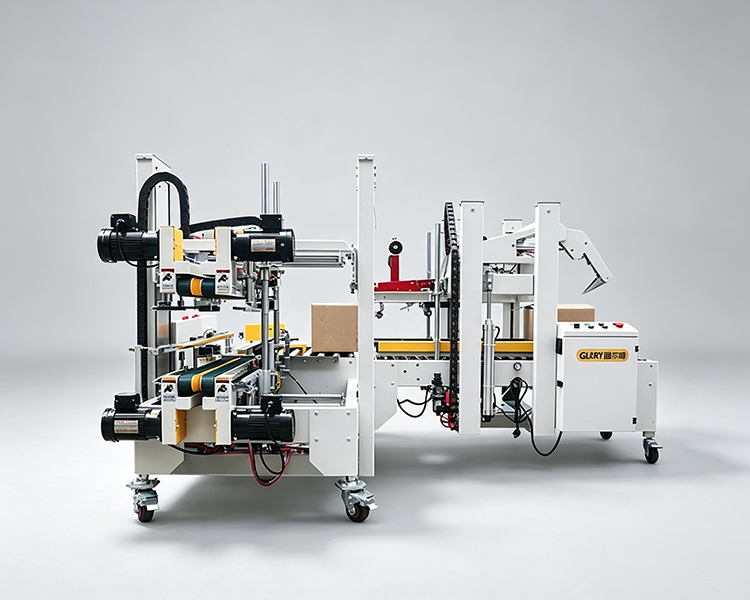

GPI-655+GPH-655

The Fully Automatic Flap Folding Carton Sealer is integrated with a Fully Automatic Four-Corner Edge Carton Sealer to achieve an I-type carton sealing effect. It is suitable for fully automatic I-type sealing of cartons in multiple specifications during the same operating period. No manual adjustment is required, as the machine automatically adapts to the carton width and height and adjusts accordingly, significantly reducing labor requirements and improving efficiency.

Since its successful development, the machine has been widely used in the food, pharmaceutical, daily chemical, toy, electronics, printing, and other industries.

Max Speed

6pcs/min

Carton Size

Max
L600mm x W500mm x H500mm

  • Intelligent Height & Width Adjustment:
    Intelligently adjusts the machine width and height according to carton specifications, suitable for sealing cartons of the same specification during the same operating period.
  • Neat Sealing:
    Cylinder-controlled and motor-driven conveying and sealing provide fast, smooth, and neat sealing.
  • Labor Saving:
    Carton packaging operations are completed by the machine instead of manual labor.
  • Higher Efficiency:
    Provides stable sealing speed and high efficiency.
  • Easy Operation:
    Equipped with a simple control panel for economical and durable operation, with a high level of safety and a low failure rate.

MODEL GPI-655+GPH-655
Sealing Speed 4-6pcs/min
Carton Size Range L320-600mm*W200-500mm*H180-500mm
Power Supply 110/220V 50/60Hz 1Phase
Power 1500W
Tape Size 60/72mm
Air Consumption 700NL/min
Required Air Pressure 0.6Mpa
Table Height 600-650mm
Machine Dimensions L3200mm*W2100mm*H1580mm
