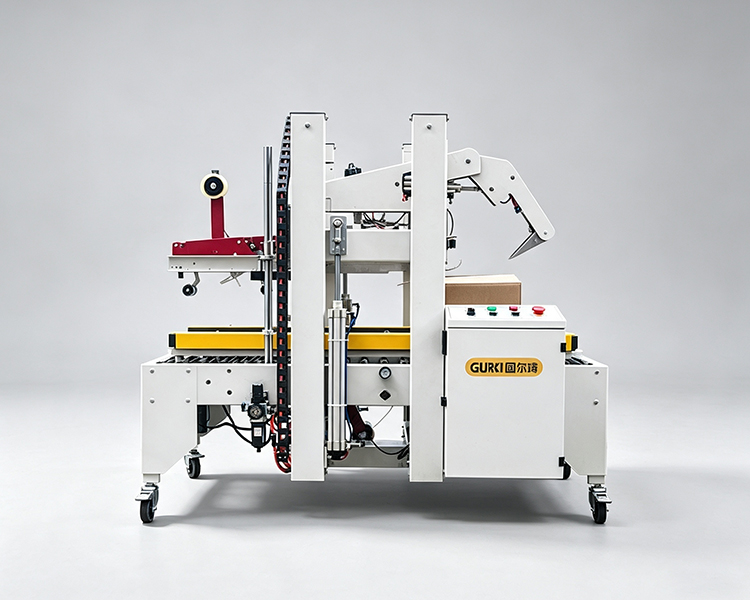

Fully Automatic Flap Folding Carton Sealer
Fully Automatic Flap Folding Carton Sealer

Fully Automatic Flap Folding Carton Sealer

GPI-866

The Fully Automatic Flap Folding Carton Sealer automatically folds the top flaps of cartons inward, providing smooth and stable operation. The carton sealing process is completed continuously in one operation, producing neat sealing results while reducing manual effort.

The machine can be used together with automated packaging machinery. It reduces costs, eliminates the need for manual operation, and standardizes packaging. This flap folding carton sealer is widely used in the food, pharmaceutical, beverage, tobacco, daily chemical, automotive, cable, electronics, and other industries.

Max Speed

25m/min

Carton Size

Max
L800mm x W600mm x H600mm

  • Automatic Height & Width Adjustment:
    Automatically adjusts the machine width and height according to carton specifications, without manual operation, making adjustment convenient and quick.
  • Neat Sealing:
    Pneumatic sealing provides fast and neat sealing.
  • Labor Saving:
    Carton packaging operations are completed by the machine instead of manual labor.
  • Higher Efficiency:
    Provides stable sealing speed for higher efficiency.
  • Easy Operation:
    Equipped with a simple control panel for economical and durable operation, with a high level of safety and a low failure rate.
  • Safety Protection:
    Equipped with a blade guard to help prevent accidental cuts and injuries during operation.

MODEL GPI-866
Conveyor Speed 0-25m/min
Carton Size Range L400-800mm*W200-600mm*H180-600mm
Power Supply 110/220V 50/60Hz 1Phase
Power 450W
Tape Size 48/60/72mm
Air Consumption 320NL/min
Table Height 600+150mm
Machine Dimensions L2220mm*W1240mm*H1550mm
Machine Weight 420kg
