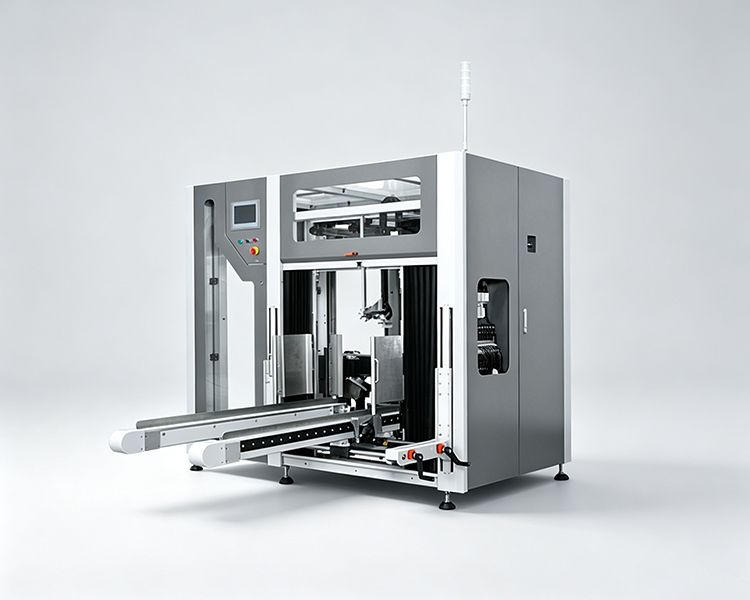

Intelligent Vertical Carton Erector Machine
Intelligent Vertical Carton Erector Machine

Intelligent Vertical Carton Erector Machine

GCE-45

GURKI Intelligent Vertical Unpacking Machine GCE-45 employs a fully servo-driven system to precisely coordinate and control the three major processes of carton picking, lifting and folding,and carton pushing. It achieves millimeter-level square forming of cartons, significantly enhancing stability and production efficiency. It is compatible with flexible switching among multiple specifications, facilitating the intelligent upgrade of downstream packaging.

Send Your Inquiry Now Get Best Quote

Max Speed

30 cases/min

Packing Size

L200-500×W150-400×H100-400mm

  • Replace tape quickly: Equipped with protective door, replacing tape conveniently and safely as the door open.
  • Push carton board automatic buckle: Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.
  • Mechanism of folding front and rear board: Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.
  • Siemens PLC: The internal electric circuit adopts anti-jamming technology and Siemens control program, which can control position accurately and work stable for long time.
  • Endurable conveyor belt: Using endurable conveyor belt with strong friction which can transport steadily.
  • Automatic alarm: When tape broken or used up, the alarm will make sounds automatically. It’s convenient for user to change and adjust in time.
MODEL GCE-45
Carton Opening Speed 10-30cases/min
Carton Size L200-500×W150-400×H100-400mm
Power Supply 380V 50Hz
Power 5000W
Adhesive Tape Width 55-72mm (Choose one type)
Air Consumption 400L/min
Air Compressing 6-8kg/cm³
Table Height 620-650 mm
Machine dimension L2240×W2680×H1900mm
Machine Weight 1400KG

  • Replace tape quickly

    Equipped with protective door, replacing tape conveniently and safely as the door open.

  • Push carton board automatic buckle

    Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.

  • Mechanism of folding front and rear board

    Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.

  • Siemens PLC

    The internal electric circuit adopts anti- jamming technology and Siemens control program, which can control position accurately and work stable for long time.

  • Endurable conveyor belt

    Using endurable conveyor belt with strong friction which can transport steadily.

  • Automatic alarm

    When tape broken or used up, the alarm will make sounds automatically. It’s convenient for user to change and adjust in time.

  • Available for customized horizontal material trough

  • Available for multiple-size cartons

    Width can be as small as 150mm.

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.
