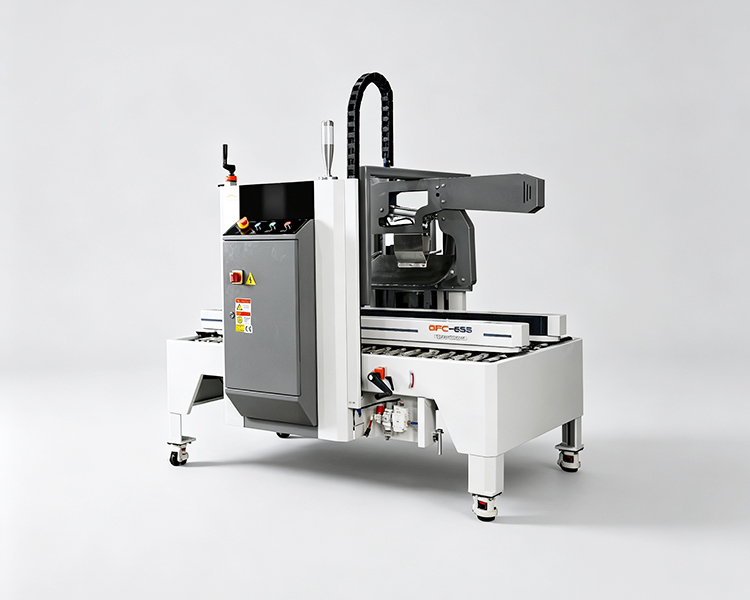

Auto flap foldingcarton sealer with servo drive
Auto flap foldingcarton sealer with servo drive

Auto flap foldingcarton sealer with servo drive

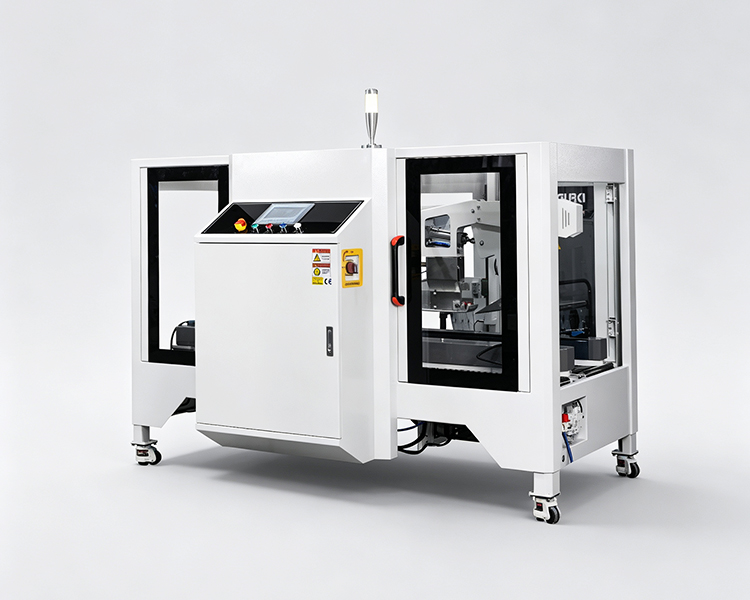

GFI-655SV

Square tube welding slide rail, precise accuracy; size pre-detec-tion function, measuring carton size in advance, overall efficiencyup to 16 PCS/Min; lower core lifting mechanism, easy to maintaindual-circuit electrical protection, component protection: compo-nents meet CE standards, safe and reliable.

Max Speed

18-36m/min

Packing Size

Max
L23.6×W19.7×H19.7in

Min
L9.8×W5.9×H7.1in

  • Durable parts: use imported parts and electrical components
  • Easy adjustment: manually adjust the width and height of the machine according to the carton specifications
  • Fast sealing: automatically fold the top cover of the carton, automatically attach the tape up and down, economical, smooth and fast
  • Safety protection: Install blade guards to avoid accidental punctures during operation
  • Applicability: The automatic sealing machine can be used in a single machine or in conjunction with an automated packaging line.
MODEL GFI-655SV
Conveyor speed 18-36m/min
Carton Size

L9.8-23.6in×W5.9-19.7in×H7.1-19.7in

Power Supply 380V 50/60Hz 1Phase
Power 4500W
Adhesive Tape Width 1.9/2.4/2.8in(choose one of them)
Air Consumption 100NL/min
Air Compressing 0.6Mpa
Table Height 23.6+2in
Machine Dimension L86.6×W59.1×H70.9in
Machine Weight 1543.2lb

The GURKI Advantage

LEARN MORE

Request a Quote for Your Packaging Project Today

Purchasing packaging machine can be complex. Here are some tips to avoid pitfalls when selecting a supplier for high-quality equipment and excellent after-sales service.

  • Research and Check Reviews
  • Learn More About Manufacturers
  • Arrange On-Site Visits
  • Ensure Thorough After-Sales Support
  • Timely Delivery
