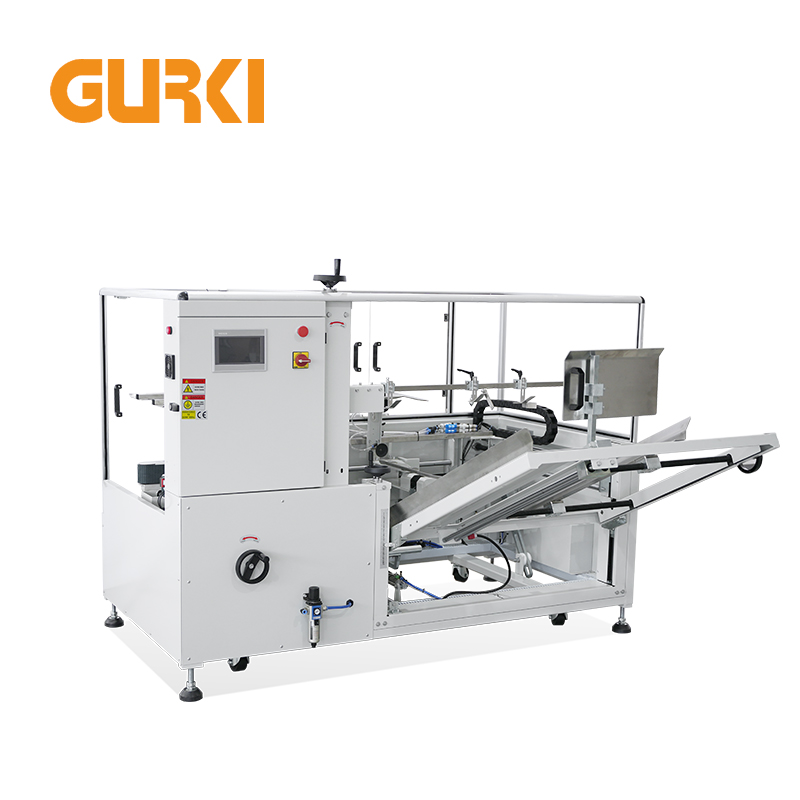

Automatic Carton Forming Bottom Sealer
Automatic Carton Forming Bottom Sealer

Automatic Carton Forming Bottom Sealer

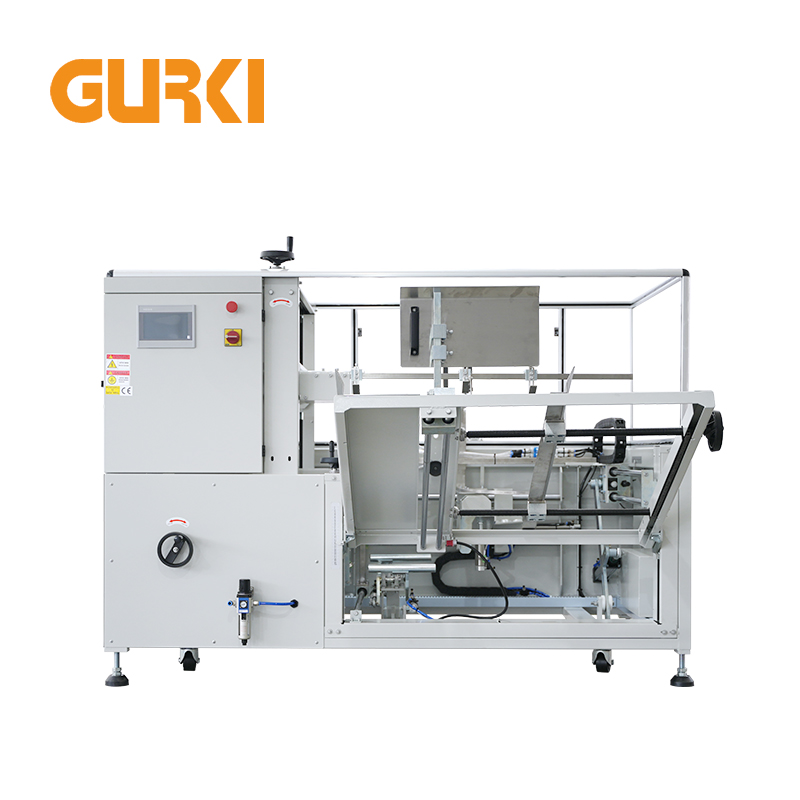

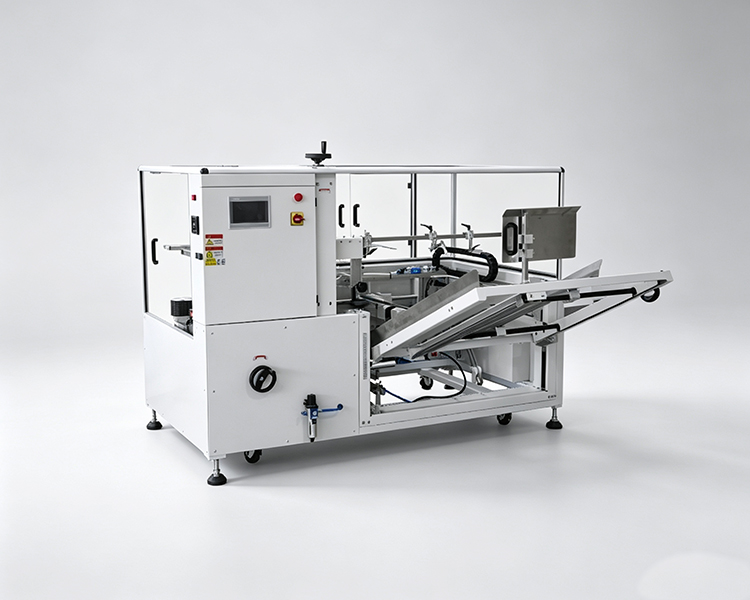

GPK-40E

GPK-40E is a new generation product of independently produced and designed in our company, equipped with protective door in tape replacement area to meet market requirements, more convenient and easy. The machine adopts strict production process, vertical producing speed reaches 12 cartons/min, drawing cartons and forming, and adds automatic alarm function when tape broken or no tape. It has been widely used in food, medicine, beverage, tobacco,daily chemical, electronics and other industries.

Max Speed

12 cases/min

Packing Size

L250-450×W150-400×H100-400mm

  • Replace tape quickly: Equipped with protective door, replacing tape conveniently and safely as the door open.
  • Push carton board automatic buckle: Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.

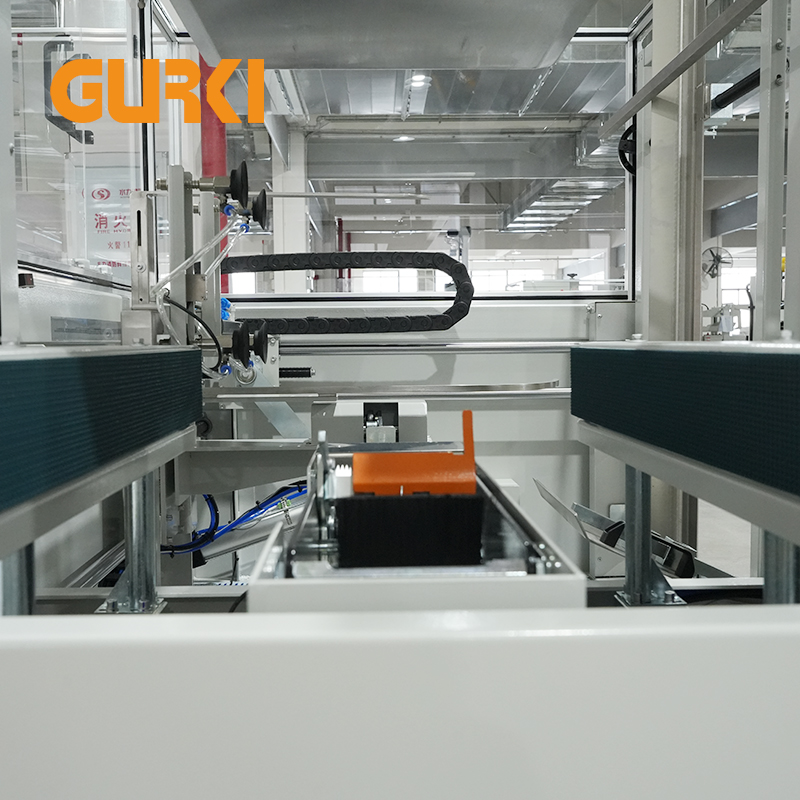

  • Mechanism of folding front and rear board: Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.

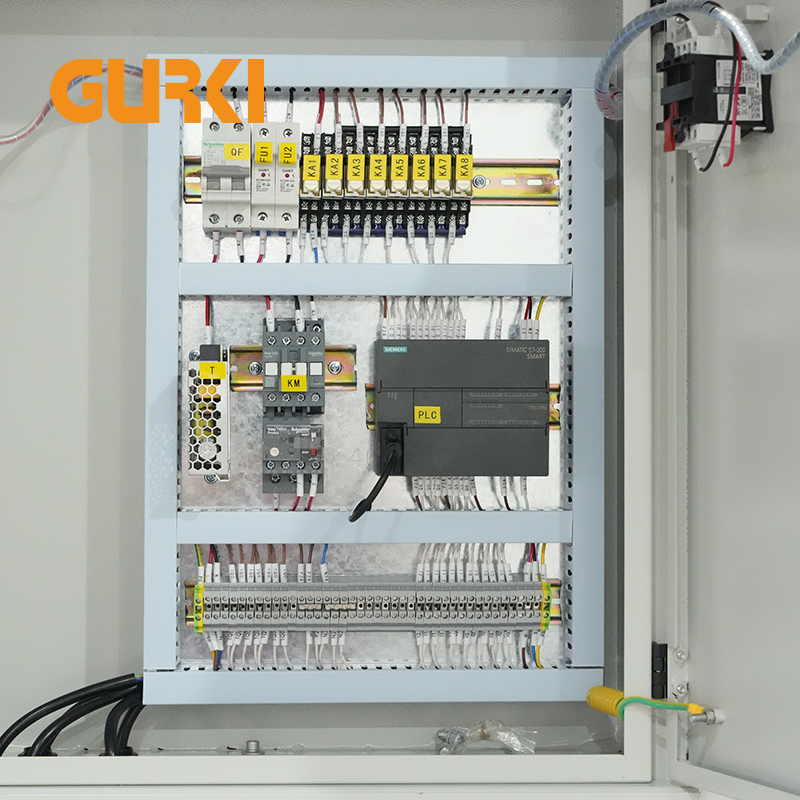

  • Siemens PLC: The internal electric circuit adopts anti-jamming technology and Siemens control program, which can control position accurately and work stable for long time.

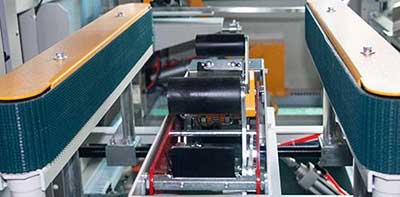

  • Endurable conveyor belt: Using endurable conveyor belt with strong friction which can transport steadily.
  • Automatic alarm: When tape broken or used up, the alarm will make sounds automatically. It’s convenient for user to change and adjust in time.
MODEL GPK-40E
Carton Opening Speed Up to 10-12 cases/min
Carton Size L270-450×W150-400×H100-400mm
Power Supply 110/220V 50/60Hz 1 Phase
Power 240W
Adhesive Tape Width 48/60/75mm (Choose one type)
Carton Storage Quantity 80-100pcs (800-1000mm)
Air Consumption 450NL/min
Air Compressing 6kg/cm³
Table Height 620+30 mm
Machine dimension L2100×W2100×H1450mm
Machine Weight 450KG

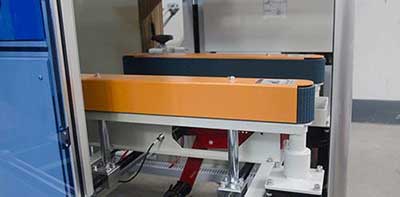

  • Replace tape quickly

    Equipped with protective door, replacing tape conveniently and safely as the door open.

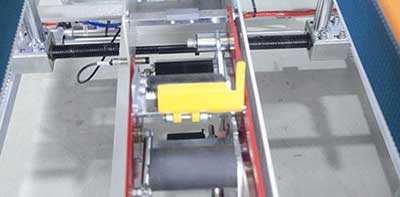

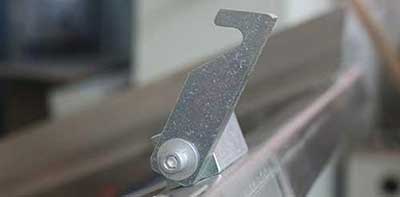

  • Push carton board automatic buckle

    Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.

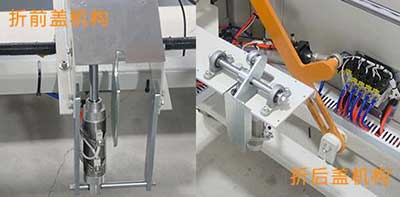

  • Mechanism of folding front and rear board

    Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.

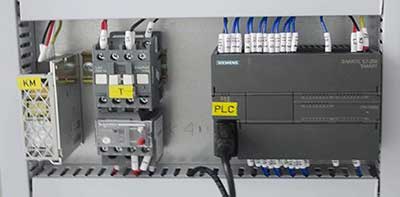

  • Siemens PLC

    The internal electric circuit adopts anti- jamming technology and Siemens control program, which can control position accurately and work stable for long time.

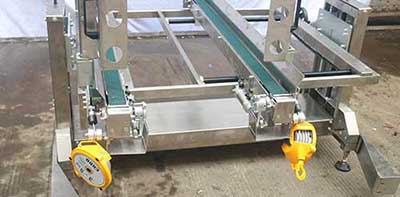

  • Endurable conveyor belt

    Using endurable conveyor belt with strong friction which can transport steadily.

  • Automatic alarm

    When tape broken or used up, the alarm will make sounds automatically. It’s convenient for user to change and adjust in time.

  • Available for customized horizontal material trough

  • Available for multiple-size cartons

    Width can be as small as 150mm.

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.
