Automatic Carton Erector
Automatic Carton Erector

Automatic Carton Erector

GPK-50E

The automatic carton erector GPK-50E is a vertical box-opening machine with a speed of 10 boxes/min. The machine adopts PLC+ human-machine interface control. The carton can automatically complete the folding and sealing bottom during the transportation, and it does not stay in the process of folding the bottom. That is to say, the machine can complete the whole process of suction box, molding, folding and sealing bottom of carton at the same time. It is easy to operate, simple to maintain, and stable in performance.

Max Speed

8-10 cases/min

Packing Size

L320-650mmxW150-500mmH150-500mm

  • Durable parts: Using durable parts and electrical components, the accessories have stable performance, strict structural design, and no vibration during operation.
  • Push box plate automatic buckle: The trough fixing bracket adopts the automatic buckle of the push box plate to lock the trough plate, which is convenient for users.
  • Exterior: The total length of the machine is 2350mm, which occupies smaller area than similar products. Similar products in the market have relatively large shape, length of more than 3600mm,which cover large area.
  • Precision parts: Tens of thousands of parts aging tests to ensure that every detail is more stable, low failure rate, safe production, and efficient.
  • Durable conveyor belt: Using durable conveyor belt with strong friction which can transport steadily.
  • Suction cup: Using suction cups with strong suction to grab carton stably and durable.
MODEL GPK-50E
Carton Opening Speed 8-10 cases/min
Carton Size L320-650mmxW150-500mmxH150-500mm
Power Supply 220V 50/60Hz 1 Phase
Power 240W
Adhesive Tape Width 48/65-72mm(Choose one type)
2inch,3inch
Carton Storage Quantity 80-100pcs (1000mm)
Air Consumption 450NL/min
Air Compressing 6kg/cm³
Table Height 620-670 mm
Machine dimension L2350×W2100×H1650mm
Machine Weight 600KG

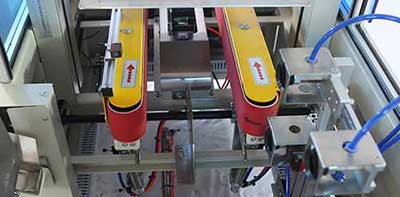

  • Durable parts

    Using durable parts and electrical components, the accessories have stable performance, strict structural design, and no vibration during operation

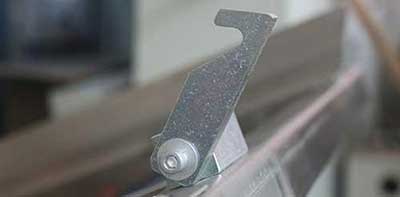

  • Push box plate automatic buckle

    The trough fixing bracket adopts the automatic buckle of the push box plate to lock the trough plate, which is convenient for users.

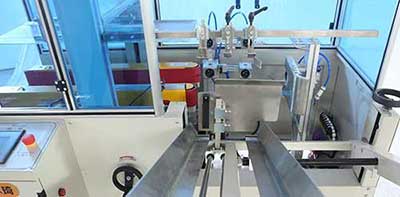

  • Exterior

    The total length of the machine is 2350mm, which occupies smaller area than similar products. Similar products in the market have relatively large shape, length of more than 3600mm,which cover large area.

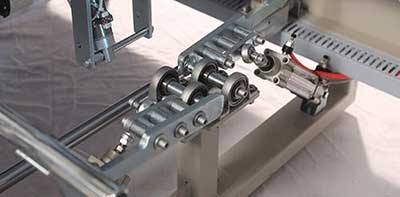

  • Precision parts

    Tens of thousands of parts aging tests to ensure that every detail is more stable, low failure rate, safe production, and efficient.

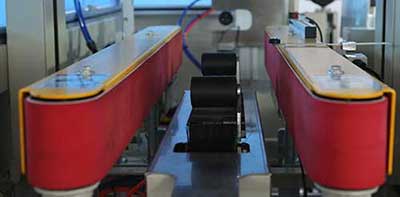

  • Durable conveyor belt

    Using durable conveyor belt with strong friction which can transport steadily.

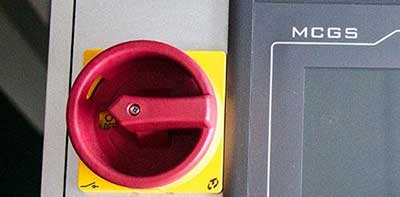

  • Power switch

    Adopt cost-effective power switch, the service life can reach 100,000 times.

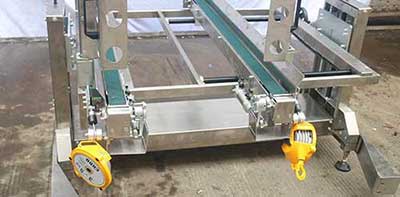

  • Available for customized horizontal material trough

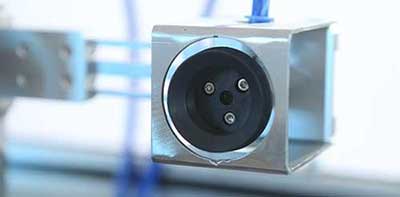

  • Suction cup

    Using suction cups with strong suction to grab carton stably and durable.

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.

Customized to your needs • Individual and flexible.

Our variety of case handling equipment ranges from standard machines that can erect up to 8 boxes per minute all the way to high-speed case erectors that can erect 50 boxes per minute and can be customized for your application.
