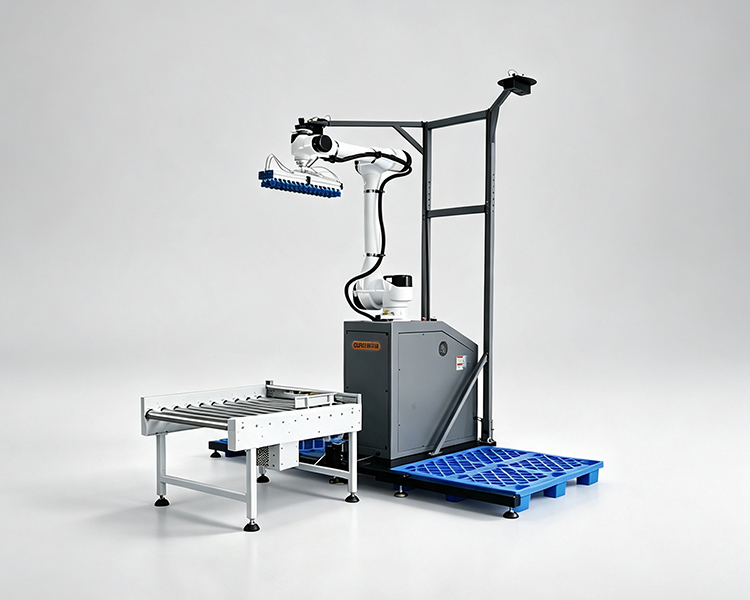

3D Vision AI Depalletizing Robot
3D Vision AI Depalletizing Robot

3D Vision AI Depalletizing Robot

GPM-R30Ai3D

3D Vision AI Depalletizing Robot work closely with human workers to improve production efficiency and flexibly adapt to different tasks. Equipped with safety sensors, it can learn independently and create a safer and more efficient working environment for workers. It has a compact and beautiful appearance and is easy to adjust. This equipment uses a touch screen to operate and realize intelligent operation management, which is simple and easy to master. It can greatly reduce labor personnel and reduce labor intensity.  It is widely used in the depalletizing process of multiple industries, such as cartons, pharmaceuticals, daily necessities, food, beverages, cosmetics, and metals. products, etc.

Depalletizing speed

6 times/minute

Applicable pallet size

L1200*W1200*H140(mm)

High flexibility and adaptability: Compatible with a variety of materials, the program can be switched immediately when changing production, and it is suitable for food, pharmaceuticals, daily chemicals and other industries.
Improve operational efficiency: By using point cloud analysis and AI algorithms, the optimal gripping point is located and obstacles are dynamically avoided, enabling the robotic arm to operate safely and efficiently.
Reduce reliance on manual labor: Replace repetitive tasks, reduce costs and increase efficiency, and eliminate fatigue errors and workplace injuries.
Highly intelligent and easy to use: The graphical user interface allows ordinary workers to be trained and use it immediately, and the model can be changed in 5 minutes.
Data traceability optimization: Depalletizing data (stack type, quantity, time) is automatically recorded and integrated into the MES for production analysis and process improvement.
One-click start: Supports one-click start, automatic depalletizing, and dual cameras support alternating depalletizing.

MODEL GPM-R30Ai3D
Depalletizing speed 6 boxes/minute (small boxes can be customized with double boxes of 12 boxes/minute)
Load weight 30KG
working radius 1800mm
Machine height

2580mm-3130mm

Arm length 1800mm
Destacking height 2000mm
Maximum pallet size

1200mm*1200mm*140mm

Suction cup size

355*300mm (2 pcs, can be customized)

Covered area

 6㎡ (including double stacks)

Equipment weight

550KG

temperature range

0-55°C

Rated voltage

Single phase 220V

Equipment power

3000W

Protection level

IP54

Repeat positioning accuracy

±0.1mm

Compatible sizes

L200-1200*W200-1200*H100-600
(Customized suction cups are required for length and width sizes above 600mm

Compatible surfaces

Ordinary carton surface, various smooth surfaces, various metal surfaces
