High-speed Carton Erector for Small Boxes
High-speed Carton Erector for Small Boxes

High-speed Carton Erector for Small Boxes

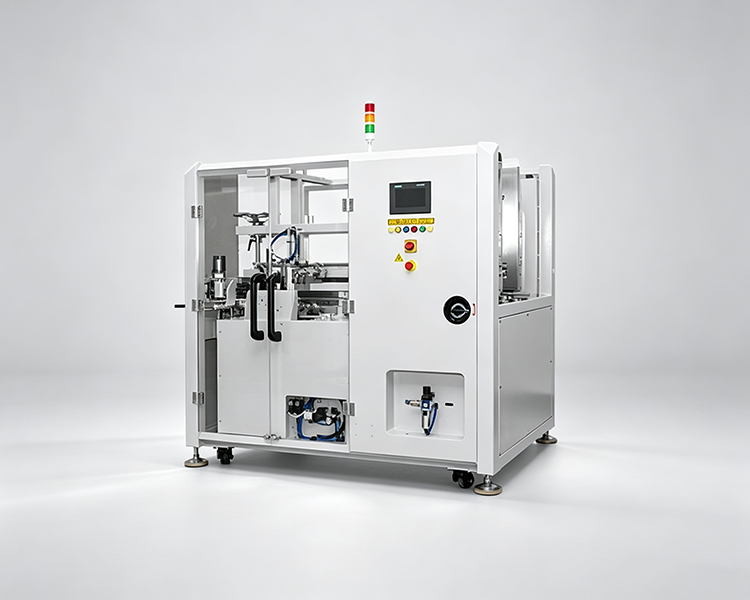

GPK-30H20

GPK-30H20 E-commerce high-speed unpacking machine is a horizontal rapid prototyping machine for small cartons specially designed for the e-commerce industry. Suction box, forming, bottom folding and bottom sealing are completed at one time, and the unpacking speed is 20 cartons per minute. It can solve the problem of a large number of packaging and slow packaging in the peak season of e-commerce. At the same time, it does not require any maintenance, and it can be used as long as it is powered on.

Max Speed

20 cases/min

Packing Size

L130-280×W80-200×H80-200mm

  • Suitable for small cartons: A small carton packing specially developed for the e-commerce industry, suitable for small boxes;
  • Double gear: The double-gear mechanism design is adopted. Compared with the traditional pin-in method, the carton has a larger bearing capacity and is more stable when taking out the carton. The carton stock can reach 600mm;
  • Fold mechanism: Adopt double-link double-swing arm, folding front and rear cover mechanism design, the carton is formed quickly, the action is light, the unpacking is smooth, and the carton forming rate is high;
  • High-performance motor: The stable, powerful and durable motor is selected, which can work quickly and efficiently without interruption, with strong stability;
  • Man-machine interface: The Siemens PLC control program is selected, and the operation interface is simple, which is convenient for the operator to input data and adjust;
  • Alarm prompt function: With tape and carton out of material alarm function, no material is automatically reminded, which is convenient for operators to add materials in time.
MODEL GPK-30H20
Carton Opening Speed 15-20 cases/min
Carton Size L: 130-280mm W: 80-200mm H:  80-200mm
Power Supply 220V 50/60Hz 1 Phase
Power 1000W
Adhesive Tape Width 48mm,  2 inch
Air Consumption 600NL/min
Air Compressing 5-7kg/cm³
Table Height 900+50mm
Machine Dimension L1700xW1210xH1400mm
Machine Weight 700Kg

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.

Customized to your needs • Individual and flexible.

Our variety of case handling equipment ranges from standard machines that can erect up to 8 boxes per minute all the way to high-speed case erectors that can erect 50 boxes per minute and can be customized for your application.

Here are some things you can expect:

·A review of your current packaging processes and suggestions for improvements.
·A plan for how to right-size machine platforms for speed and complexity to match your current—and future—production demands.
·Examples of how packaging automation was successfully implemented in businesses similar to yours.
·Suggestions for new packaging equipment that will dramatically increase productivity and efficiencies.
