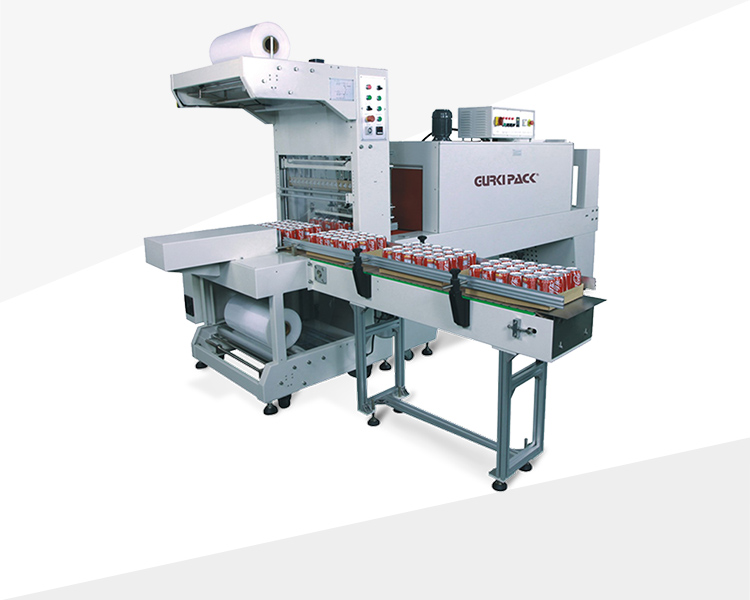

Automatic Sleeve Sealing and Shrinking Machine

Automatic Sleeve Sealing and Shrinking Machine


The Automatic Sleeve Sealing and Shrinking Machine GPL-6030+GPS-6040 is an automatic cuff packaging machine made by international advanced technology. It can be equipped with automatic packaging line to complete the automatic unmanned packaging of the product. It is suitable for packaging of multiple items or multiple items in the bottom. This packaging machine is suitable for packaging of cartons, beer, beverages, cosmetics, condiments, etc.

Max Speed


Packing Size



  • Firmly sealed:Adopting control components, the performance can be stable and durable, the sealing knife adopts special design, the sealing is firm, no cracking, no sticking knife.
  • Automatic packaging:it can achieveautomatic feeding, pushing, film feeding, sealing and cutting, mechanical speed regulation, adjusting feed conveyor speed.
  • Easy to operate, it takes approximately 2 to 3 minutes to complete different specifications.
  • Feed conveyor belt direction can be designed as left feed or right feed according to customer needs.
  • Use PE shrink film.
MODEL GPL-6030 GPS-6040
Film PE PE
Packing Speed 8-18pcs/min 6-20pcs/min
Packing Size W+H≤650mm W≦500×H≦300mm
Cutter Size / Tunnel Size 700mm L1800×W600×H400mm
Max Temperature 220°C 220°C
Electrical 220V/380V 50-60Hz 3 Phase 220V/380V 50-60Hz 3 Phase
Power 2KW 20KW
Max Current 10A 32A
Air Compressing 5.5-8.5kg/cm³ /
Table Height 850+30mm 850+30mm
Machine Dimension L2675×W1400×H2000mm L2730×W980×H1710mm
Machine Weight 420kg 600kg
