M Type Pallet Wrapping Machine

GP1650FM

The M Type Pallet Wrapping Machine simplifies the automated pallet wrapping process. It reduces costs without any reduction in quality or speed. Operators load pallets onto the turntable and start the machine. From that point on, the process of wrapping the pallet is fully automated. This includes the film tail being cut and the option of welding the tail against the pallet. Operators then finish the process by unloading the wrapped pallet from the turntable.

Video Send Your Inquiry Now Get Best Quote

Max Speed

10-30 Pallet/hr

Maximum pallet size

L 500-1200mm×W 500-1200mm×H 500-1800mm

Turntable Drive

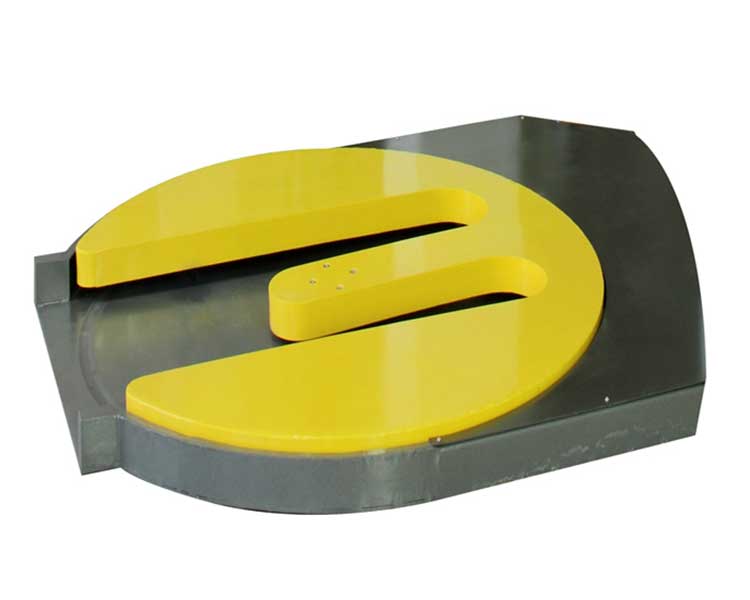

M typeturntable ,easy for pallet forklift load the pallet on machine.Turntable chain drive, slow start, slow stop, automatic reset; turntable speed 0～12 rpm variable frequency speed regulation.
Control System
PLC programmable control, the number of winding layers and times can be changed, the photoelectric switch automatically senses the height of the goods,Upper and break film, automatic control of stroking process.
Film System

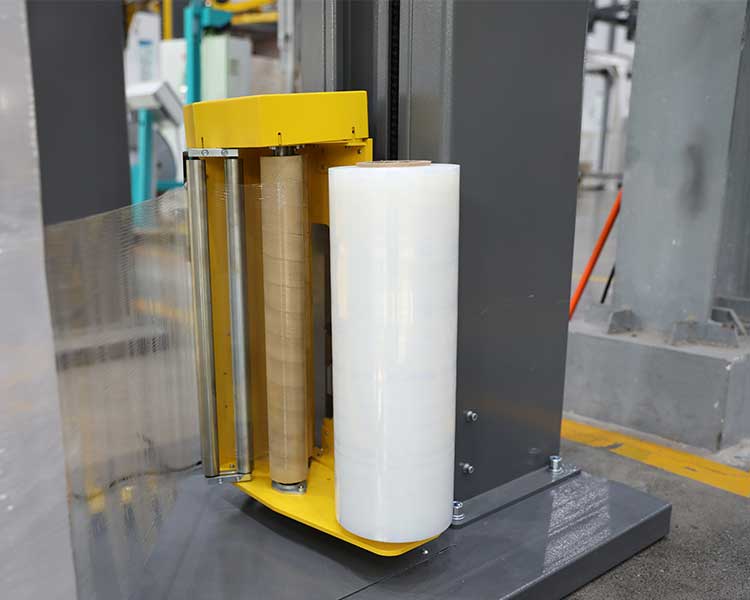

S-shaped through-membrane structure, high tensile force. Easy and fast film change.The winding numbers on the top and bottom are individually adjustable. The film follow-up system can automatically feed the film.

Model	GP1650FM	Spare Parts	Brand
Maximum wrapping speed	10-30 Pallet/hr	Inverter	SIEMENS(Germany)
Maximum pallet size	L 500-1200mm×W 500-1200mm×H 500-1800mm	Position sensor	SIEMENS(Germany)
Maximum Wrapping Height	2000mm	PLC	SIEMENS(Germany)
Turntable Speed	0-12pm	Travel Switch	SCHNEIDER(French)
Turntable Size	1650mm（1800mm，2000mm，optional)	Motor	ZHONGDA(China)
Machine Power	1.35KW	Relay	OMRON(Japan)
Film Cut and Clamp	Semi Automatic	Touch screen	SIEMENS(Germany)
Max Load Weight	1500KG	Switch	SCHNEIDER(French)
Standard Film Width	500mm	Photoelectric sensor	PEPPERL+FUCHS(Germany)
Constant Film Delivery Force	Standard	Terminal block	Weidmuller(Germany)
Standard Pre-Stretch	250%	24V power supply	OMRON
Film Capacity	250mm Diameter
Up&down Drive system	Up&down Drive system
Fix Film on Pallet	Automatic	OPTIONAL FUNCTION
Roping system	Have	Ramp	Optional
Muti-layer function	Have	weighing scale	Optional
Machine Size	275016502350mm	Top pressure function	Optional
Machine weight	700KG	Anti-explosion	Optional
Voltage	220 V 60hz
