Pallet Wrapping Machine With Roller Conveyor
Pallet Wrapping Machine With Roller Conveyor

Pallet Wrapping Machine With Roller Conveyor

GP2000FZ-PL

The machine is applicable to glasswares, softdrink , electronic, chemical, food, cosmetics and other relevant industries. By wrapping the film, the appearance of packed product is more beautiful , it can protect the cartons or cases from the moisture, dust, leaking, or pollution , .etc, more and more companies choose this machine to reduce the extra consume during transportation .

Max Speed

10-30 Pallet/hr

Maximum pallet size

L 500-1200mm×W 500-1200mm×H 500-1800mm

  • Fully Automatic
    The entire winding process does not require human involvement, which is safe and efficient. Reduce labor intensity and effectively use human resources.
  • Thin Film System

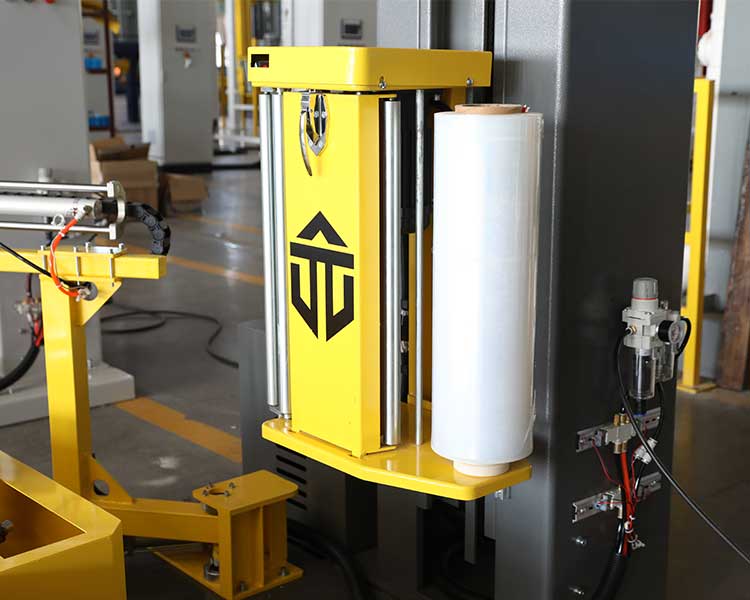

    The open-door film holder makes it more convenient to wear the film. The winding numbers on the top and bottom are individually adjustable. The film follow-up system can automatically feed the film.
  • Control System

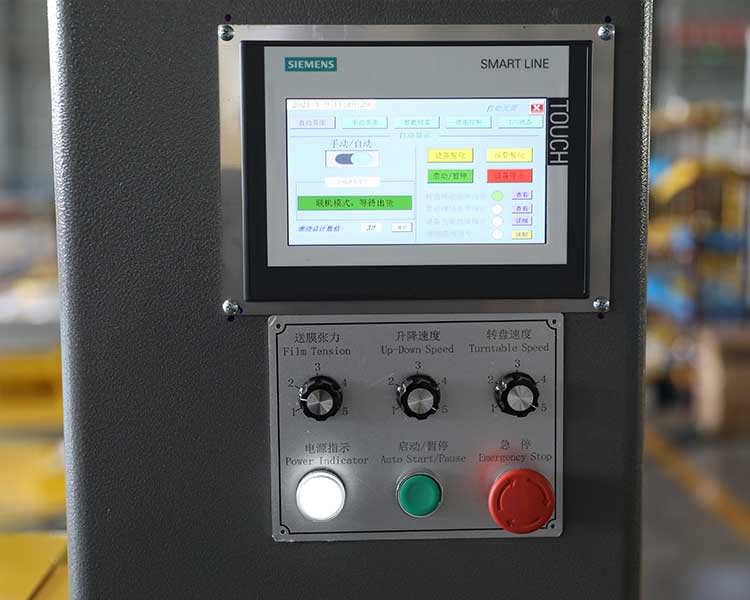

    PLC programmable control, the number of winding layers and times can be changed, the photoelectric switch automatically senses the height of the goods,Upper and break film, automatic control of stroking process.
Model
GP2000FZ-PL
Spare Parts
Brand
Maximum wrapping speed
10-30 Pallet/hr
Inverter
SIEMENS(Germany)
Maximum pallet size
L 500-1200mm×W 500-1200mm×H 500-1800mm
Position sensor
SIEMENS(Germany)
Maximum Wrapping Height
2000mm
PLC
SIEMENS(Germany)
Turntable Speed
0-12pm
Travel Switch
SCHNEIDER(French)
Turntable Size
1650mm(1800mm,2000mm,optional)
Motor
ZHONGDA(China)
Machine Power
2.85 KW/AC220V
Relay
OMRON(Japan)
Film Cut and Clamp
Fully Automatic
Touch screen
SIEMENS(Germany)
Max Load Weight
1100KG
Switch
SCHNEIDER(French)
Standard Film Width
500mm
Photoelectric sensor
PEPPERL+FUCHS(Germany)
Constant Film Delivery Force
Standard
Terminal block
Weidmuller(Germany)
Standard Pre-Stretch
250%
24V power supply
OMRON
Film Capacity
250mm Diameter
Up&down Drive system
Up&down Drive system
Fix Film on Pallet
Automatic
OPTIONAL FUNCTION
Roping system
Have
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2750*1650*2350mm
Top pressure function
Optional
Machine weight
1100KG
Anti-explosion
Optional
Voltage
220 V 60hz

The GURKI Advantage

LEARN MORE

Request a Quote for Your Packaging Project Today

Purchasing packaging machine can be complex. Here are some tips to avoid pitfalls when selecting a supplier for high-quality equipment and excellent after-sales service.

  • Research and Check Reviews
  • Learn More About Manufacturers
  • Arrange On-Site Visits
  • Ensure Thorough After-Sales Support
  • Timely Delivery
