Semi Automatic Pallet Wrapping Machine
Semi Automatic Pallet Wrapping Machine

Semi Automatic Pallet Wrapping Machine

GP1650F

GURKI enables you to own a POWER PRE- STRETCH machine for an affordable price. This pre-stretch model is highly demanded by those users wrapping limited pallets per day, and still interested to achieve a low cost of ownership. GURKI answers to those needs, already supplied as a full equipped machine, many options are available to be installed, in order to make this machine become your best partner in logistics.

Max Speed

10-30 Pallet/hr

Maximum pallet size

L 500-1200mm×W 500-1200mm×H 500-1800mm

  • Control System: PLC programmable control, the number of winding layers and times can be changed, the photoelectric switch automatically senses the height of the goods,Upper and break film, automatic control of stroking process.

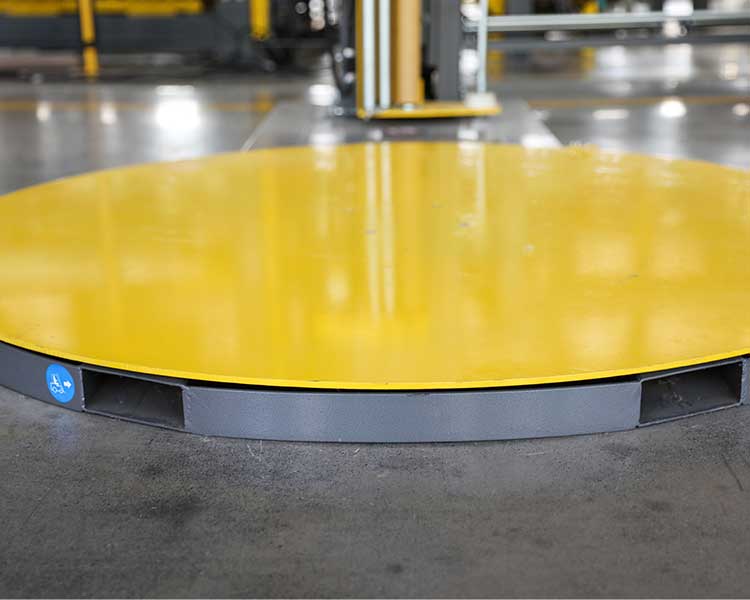

  • Turntable Drive: Turntable chain drive, slow start, slow stop, automatic reset; turntable speed 0~12 rpm variable frequency speed regulation.reserved hook film structure, convenient for starting wrapping.

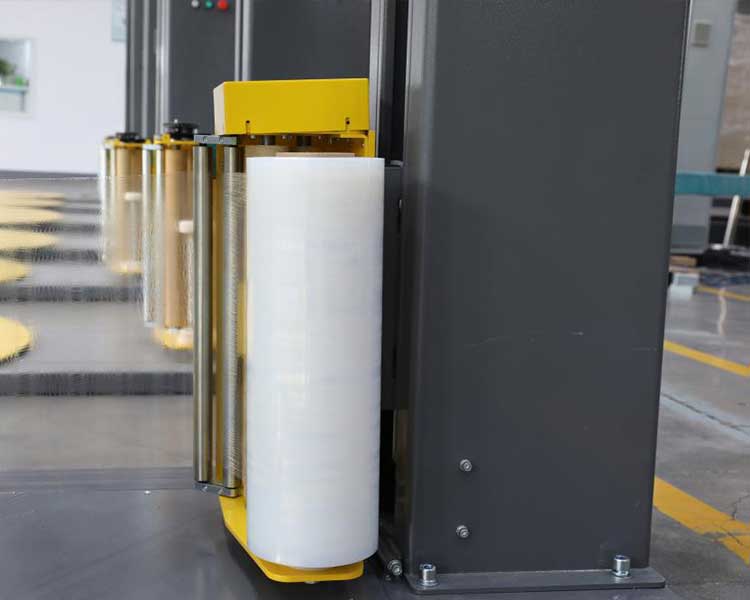

  • Film System: S-shaped through-membrane structure, high tensile force. Easy and fast film change.The winding numbers on the top and bottom are individually adjustable. The film follow-up system can automatically feed the film.
Model
GP1650F
Spare Parts
Brand
Maximum wrapping speed
10-30 Pallet/hr
Inverter
SIEMENS(Germany)
Maximum pallet size
L 500-1200mm×W 500-1200mm×H 500-1800mm
Position sensor
SIEMENS(Germany)
Maximum Wrapping Height
2000mm
PLC
SIEMENS(Germany)
Turntable Speed
0-12pm
Travel Switch
SCHNEIDER(French)
Turntable Size
1650mm(1800mm,2000mm,optional)
Motor
ZHONGDA(China)
Machine Power
1.35KW
Relay
OMRON(Japan)
Film Cut and Clamp
Semi Automatic
Touch screen
SIEMENS(Germany)
Max Load Weight
1500KG
Switch
SCHNEIDER(French)
Standard Film Width
500mm
Photoelectric sensor
PEPPERL+FUCHS(Germany)
Constant Film Delivery Force
Standard
Terminal block
Weidmuller(Germany)
Standard Pre-Stretch
250%
24V power supply
OMRON
Film Capacity
250mm Diameter
Up&down Drive system
Up&down Drive system
Fix Film on Pallet
Automatic
OPTIONAL FUNCTION
Roping system
Have
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2750*1650*2350mm
Top pressure function
Optional
Machine weight
700KG
Anti-explosion
Optional
Voltage
220 V 60hz

121212
